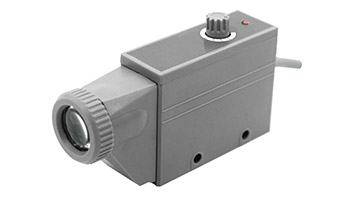

| GJKs系列色標傳感器 series of color-sensor | |||||
| 一、主要特點Main Features | |||||
| ● KS系列標志檢測光電開關是通過其本身發出之光源掃描在被檢紙表面上。 因表面顏色的不同而使反射回的光量不同,從而達到對顏色標記的識別。 ● 同軸光路設計,對高反射系數紙面(如鋁箔等)適應性更強。 ● 具有藍、綠、紅等多種光源可選,對分辨各種顏色帶來方便 ● 光電細小,分辨率極高。 ● 0.1~1m的高響應速度、能適應各種包裝機、制袋機和印刷機械這控制需要。 ● 優異的內電路設計、抗各種電磁、雜光干擾性有優良、操作穩定、無誤動作。 ● 具有靈各靈敏度調節旋鈕、不須使用工具即可調節。 | ![]() | ||||
| ● Low KS series logo detection photoelectric switch is by itself a light scanning in the inspection of the paper surface. Due to the difference of surface color and make the amount of light reflected back to different, so as to achieve the recognition of color tag. ● Coaxial optical path design, the high reflection coefficient on paper (such as aluminum foil) stronger adaptability. ● Low has blue, green, red and so on the many kinds of light source is optional, bring convenience to distinguish colors ● Photoelectric small, extremely high resolution. ● Low of 0.1 ~ 1 m high response speed, can adapt to all kinds of packing machine, bag making machine and printing machine, the need to control. ● Excellent low internal circuit design, all kinds of electromagnetic, miscellaneous light interference resistance are good, stable operation, and correct action. ● Low spirit has the sensitivity adjustment knob, need not use tools can be adjusted. | |||||
| 二、型號表 Model List | |||||
| 型號Type | 光源Light source | 引出線cable | 型號Type | 光源Light source | 引出線cable |
| GJTR22 | 紅色Red | 四芯four wire | GJTR2 | 紅色Red | 三芯Three wire |
| GJRG22 | 綠色Green | 四芯four wire | GJRG2 | 綠色Green | 三芯Three wire |
| GJT22 | 紅綠Red+green | 四芯four wire | GJ2 | 紅綠Red+green | 三芯Three wire |
| GJTB22 | 綠藍Green+blue | 四芯four wire | GJTB2 | 綠藍Green+blue | 三芯Three wire |
| GJTW22 | 綠白Green+white | 四芯four wire | GJTW2 | 綠白Green+white | 三芯Three wire |
| 三、主要技術參數 Main technical parameters | |||||
| 檢測方式 Test type | 同軸反射式 Coaxial election | 負載電流 Load current | 200mA(max) | ||
| 檢測距離 Scanning distance | 10mm±2mm | 電路保護裝置 Circuit protection device | Vs電壓有瓜極性保護,輸出有短路保護。當負載電電流L>200mA 時開關自動跳開,而在L≤200mA時信號又自動回復。同時具有任 意按錯線保護。 With power reverse protection,has short-circuited protection. When loading currentl mA,the sensor automatically turns off, and the sensor automatically recovers when L 200mA.Has self- protection for any error-wiring. | ||
| 供電電壓 Supply voltage | DC10-30V±10%波紋(Bellows)<10% | ||||
| 消耗電流Current:consumption | <45mA | ||||
| 光源色譜 Source chromatography | 紅綠藍(根據型號表選擇) red,green,blue(select according to the model list) | 靈敏度 Sensitivity | 單圈可調Single cycle adjustable | ||
| 光點 Spot | φ0.5~φ1.5 | 抗環境光 Anti-environment Light | 白熾燈(incandescent)<3000LX 太陽光(Sunlight)10000LX | ||
| 檢測角度 Detection of perspective | 光線與被測體表面垂直 允許仿差±15° Light rays should be vertical to the detected surface,a variance of+15 is allowed | 防護等級 Protection level | IP67(防潮防塵moisture-proof and dust-proof) | ||
| 響應時間 Response time | 0.1~1ms | 環境溫度 temperature | 操作(Operation)-15℃-65℃保存(Save)-15℃-80℃ | ||
| 輸出方式 Output | 亮動、暗動可選 act when light up/act when darken optional | 外殼材料 Case material | 工程塑料 Engineering Plastics | ||
| 輸出指示 Output instruc tions | 紅色(Red)LED | 引出線 Raises thread | φ5.4PVC四芯保護套屏蔽電纜 標準長2m φ5.4PVC four-core shielded and sheathed cable,standard length of 2m | ||
| 輸出電壓 Output voltage | 高電平(high)VS-(≤1.5)低電平(low)(≤1.2V) | 重量 Weight | 大約(About)300g | ||
